850nm SLD COC chip with NTC

admin@root 2025-01-04  Product Center 564

1.ProductFeatures
High output power of 25mW
BLow spectral ripples
2.Applications:

OCT

3.Performance Specifications of Optical and Electrical Characteristics at 25°C
Parameters	Symbol	Condition	Min.	Typ.	Max.	unit
Center wavelength	λc	Bias at 200mA	820	830	860	nm
Center wavelength	λc		820	830	860	nm
ASE output Power	Pase		18	25	35	mW
ASE bandwidth	Δλ		10	15	25	nm
Forward voltage	VF		1.6	1.9	2.1	V

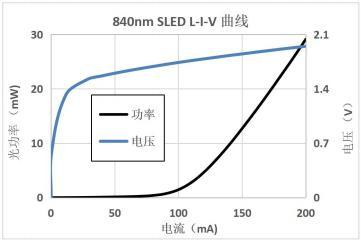

4.L-I-V curve

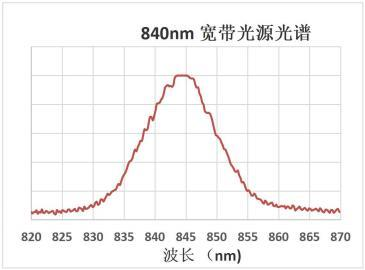

5. Optical Spectra

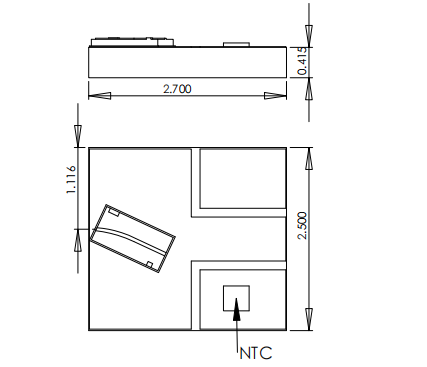

6. Chip dimension


7. Order Information:
COT-SM-84XXSR 840nm SLD COC chip with NTC
